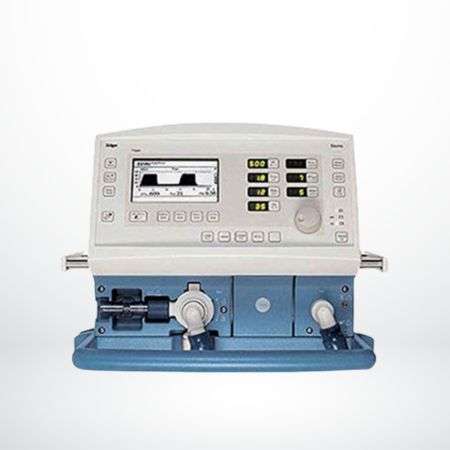

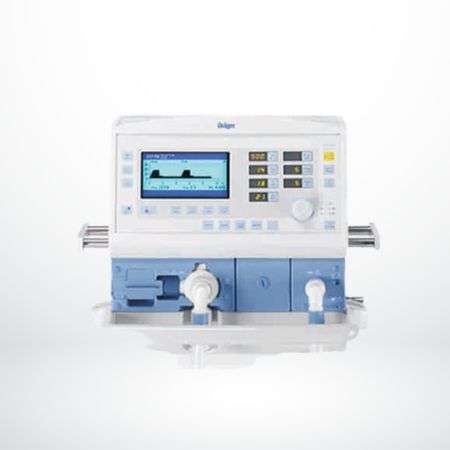

Drager Savina Ventilator

Intelligent Ventilation for Critical Care Excellence

At UM Healthcare PVT. LTD., we bring advanced life-support solutions to hospitals and ICUs with the trusted Drager Savina Ventilator. Designed for demanding critical care environments, this ventilator delivers precise, consistent, and patient-focused respiratory support. It is ideal for clinicians who need reliable performance, intuitive controls, and flexibility across a wide range of ventilation needs.

The Drager Savina Ventilator supports both invasive and non-invasive ventilation, making it a versatile choice for adult and pediatric patients in intensive care units. Its proven technology helps clinicians maintain optimal ventilation while focusing on what matters most—patient recovery.

Advanced Technology with User-Friendly Control

The Drager Savina Ventilator is engineered with smart ventilation modes and clear monitoring displays that simplify complex clinical decisions. The intuitive interface reduces training time and minimizes the chance of errors during high-pressure situations. Real-time alarms and precise parameter settings allow caregivers to respond quickly and confidently.

Its adaptive ventilation capabilities support changing patient conditions, ensuring stable respiratory care throughout treatment. This balance of advanced technology and ease of use makes it a preferred choice in modern ICUs.

Built for Reliability, Safety, and Long-Term Use

Durability is a key strength of the Drager Savina Ventilator. Built with high-quality components, it is designed for continuous operation in critical care settings. The compact and mobile design allows easy movement within hospital units without compromising performance.

When you buy from UM Healthcare PVT. LTD., you gain access not only to authentic equipment but also to dependable service support. Our commitment ensures that healthcare facilities receive equipment they can trust, day after day.

Drager Savina Specifications

Dimensions (without Trolley)

• Height: 156.1 in (383 mm)
• Width: 15 in (180 mm)
• Depth: 14.1 in (358 mm)
• Weight (basic device): 53 lbs (24 kg)
• Diagonal Screen Size: 6.1 in TFT color Screen

Measured value display

• Airway pressure measurements: Peak pressure, plateau pressure, mean airway pressure, PEEP 0 -100 mbar (cmH2O)
• Minute Volume (MV): Total MV, spontaneous MV 0 to 99 L/min, BTPS
• Tidal Volume VT: Inspiratory VT, expiratory VT 0 to 3999 mL, BTPS
• Breathing Frequency: Total and spontaneous breathing frequency, 0 -150 bpm
• Inspiratory O2-concentration: 21 to100 Vol. %
• Breathing gas temperature: 18 to 48 °C (sensor optional)
• Curve displays: Airway pressure / time, flow / time
• Ventilation Ratio (I:E):

Performance Data

• Maximum flow for pressure assist/spontaneous breathing: 180 L/min
• Value response to TO..90: ≤5 ms
• Control principle: time-cycled, volume-constant, pressure-controlled
• Safety valve opening pressure: 100 mbar (cmh2O)
• Emergency value: automatically enables spontaneous breathing with filtered ambientair if air and O2 supply should fail.
• Automatic gas switch-over function if O2 supply fails
• Output for pneumatic medicament nebuliser : Synchronized with inspiration

Operating Data

• Main Power connection: 100 V to 240 V, 50/60 Hz AC, 10 to 36 V DC
• Typical Power Consumption: 100W
• Internal battery: Approx. 60 min ( optional extension up to 7h)

Gas Supply

• Air: Turbine technology
• O2 Gas Supply:

Ventilation Modes

• IPPV (CMV), IPPVAssist (CMVAssist)
• SIMV, SIMVASB (SIMV/PS)
• CPAP, CPAPASB (CPAP/PS)
• BIPAP1), (PCV+) (optional), BIPAP)ASB (PCV+/PS) (optional)

Enhancements

• NIV – Non Invasive Ventilation with optimized alarm system and automatic leakage compensation (optional)
• AutoFlow®
• Automatic adaptation of the inspiratory flow in volume orientated ventilation modes (optional)
• LPO – Low Pressure Oxygen. Independant oxygen supply, e.g. with an O2 concentrator (optional)
• Graphic screen – Advanced ventilation monitoring (optional)
• Nurse call – Connection for transmitting alarm signals to a central alarm system (optional)
