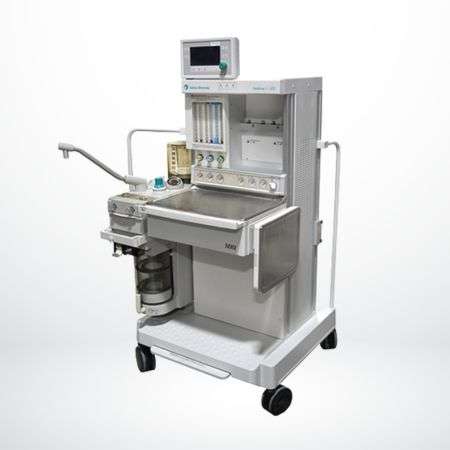

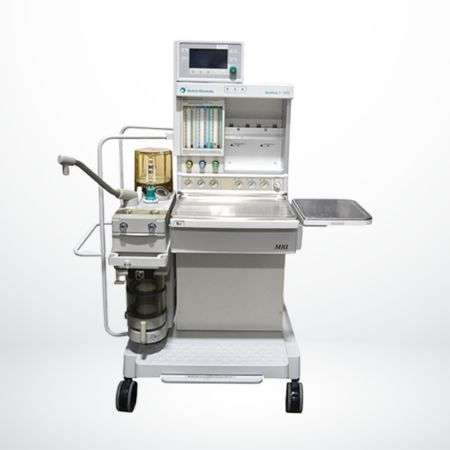

GE Aestiva 5 MRI Anesthesia Machine

Description

Ge Aestiva 5 MRI Anesthesia Machine Specifications

Dimensions

• Height: 59.8 in (152 cm)
• Width: 38.4 in (97.5 cm)
• Depth: 32.7 in (83 cm)
• Weight: ~ 300 lb (136 kg)

Ventilation Operating Modes

• Volume Control
• Pressure Control
• Synchronized Intermittent Mandatory Ventilation (SIMV) (optional)
• Pressure Support (PSVPro) with Apnea Backup ventilation (optional)
• Ventilator (VT) parameter ranges

Anesthetic Agent Delivery

• Anesthetic agent delivery: Tec 5, Tec 7
• Number of positions: 2
• Mounting: Tool-free installation Selectatec manifold interlocks and isolates vaporizers

Electrical specifications

Current Leakage

• 120V: < 300μA
• 220V: < 500μA

Power and Battery Back-Up

Power Input

• USA/Canada/Mexico: 120 Vac, 60 Hz, 10A
• Euro: 220-240 Vac, 50 Hz, 6A
• Italy/France/Belgium: 230 Vac, 50 Hz, 6A
• Japan: 100 Vac, 50 or 60 Hz, 10A
• UK: 240 Vac, 50 Hz, 6A

Backup

Power

• Demonstrated battery backup time under typical operating conditions is 45 minutes when fully charged

Battery Type

• Internal rechargeable sealed lead acid

Power Cord

• Length: 5 m/16.4 ft | Rating: 10A @ 250 Vac or 15A @ 120 Vac

Communication Port

Serial Interphase

• Isolated RS-232C compatible port
