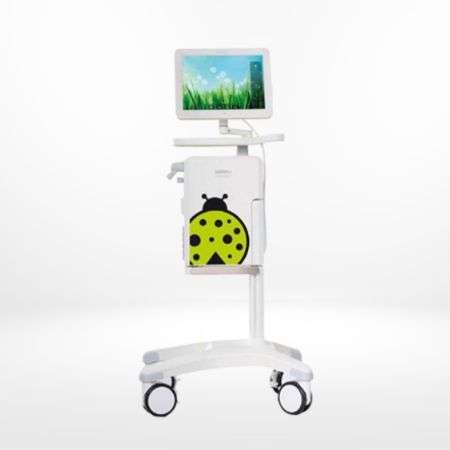

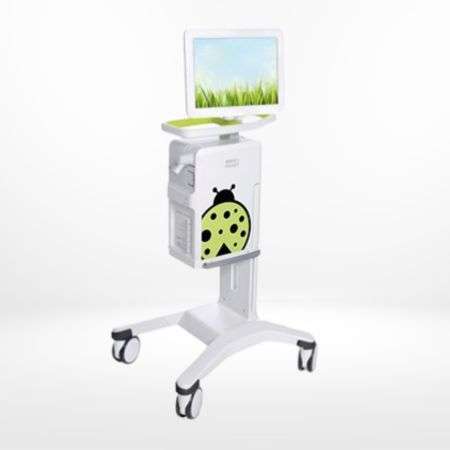

Maquet Servo-n

Maquet

(0 customer reviews)

Maquet Servo-N Neonatal Ventilator Features

The Maquet Servo-N is a neonatal ventilator. The Maquet Servo-N Neonatal Ventilator System helps provide ventilation support to the neonate while protecting the lungs, brain and other developing organs of the baby. offering both invasive and non-invasive ventilation with a variety of different modes, along with monitoring and diagnostic feature can improve the quality of breathing for the baby, allowing it to rest and grow. through the Servo- N you can monitor the Newborn’s respiratory rate, small tidal volumes, irregular breathing patterns and short inspiratory times.

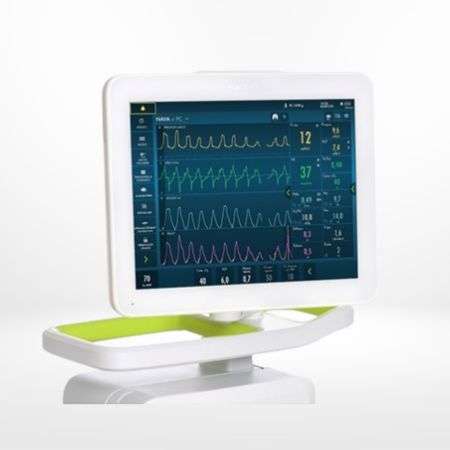

Intuitive setup, monitoring, and operation.
Monitors the electrical activity of the diaphragm (Edi).
Neurally Adjusted Ventilatory Assist (NAVA), a ventilation mode with the ability to match support to the irregular breathing patterns of neonates.
Compensates for variable leakage in both invasive and non-invasive modes of ventilation.
The ability to deliver tidal volumes as low as 2ml in patients as small as 0.6 lbs (0.3kg).

Add to wishlist

Compare

Category: Ventilator Tag: Nicu Maquet

Description

Buy Maquet Servo-N Neonatal Ventilator – 1 Trusted Neonatal Solution

UM Healthcare Pvt Ltd brings you advanced neonatal respiratory support with the Maquet Servo-N Neonatal Ventilator—engineered to deliver life-saving precision for newborns and premature infants. Designed with ultra-sensitive flow sensors and adaptive ventilation modes, this system ensures gentle, consistent breathing assistance for the most delicate patients. Hospitals and NICUs trust this ventilator for its reliability, intuitive interface, and unmatched clinical accuracy. If you’re looking to upgrade neonatal care standards, Buy Maquet Servo-N Neonatal Ventilator Online at the best price through UM Healthcare and give every newborn a stronger start.

Maquet Servo-n Specifications

Dimensions (Without Cart)

Height (Includes user interface): 32.5 in (82.6 cm)
Width: 14.4 In (36.8 cm)
Depth: 8.1 In (20.5 cm)

Weight (Without Cart)

Approx. 50 lb 11 oz (23 kg)
Patient unit 33 lb 1 oz (15 kg)
User interface 8 lb 13 oz (4 kg)
Handle 7 lb (3 kg)
Cable holder and cable 2 lb 3 oz (1 kg)

Dimensions (With Cart)

Height (Includes user interface): 53.8 in (136.8 cm)
Width (Includes Wheels): 25.4n (64.7 cm)
Depth (Includes Wheels): 21.5 In (54.7 cm)

Weight (With Cart)

Approx. 77 lb 3 oz (35 kg)
Base system approx. 50 lb 11 oz (23 kg)
Mobile cart 27 lb 9 oz (12.5 kg)

General

Patient range:
- Neonatal: 10.6 oz to 17 lb 10 oz (0.3 to 8 kg)
- Pediatric: 6 lb 10 oz to 66 lb 2 oz (3 to 30 kg)
Bias Flow: 0.5 l/min
Internal Compressible Factor: Max. 0.2 ml/cmH2O
Gas Delivery System: Microprocessor controlled valves
Maximum Airway Pressure: 125 cmH2O
Method of Triggering: Flow, pressure and Edi (with Edi module and Edi catheter)
Inspiratory Flow Range: 0 to 33 l/min
Pressure drop:
- Max. 6 cmH2O at a flow of 60 l/s (insp. channel)
- Max. 3 cmH2O at a flow of 60 l/s (exp. channel)
PEEP Regulation: Microprocessor controlled valve
Rise Time, Expiratory Flow Measurement: <12 ms for 10% to 90% response at flow of 3 to 192 l/min
Expiratory Flow Range: 0 to 192 l/min
