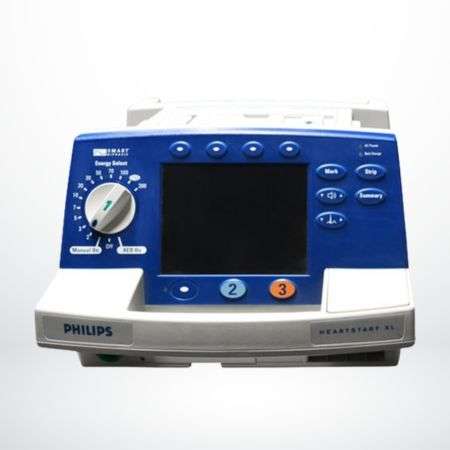

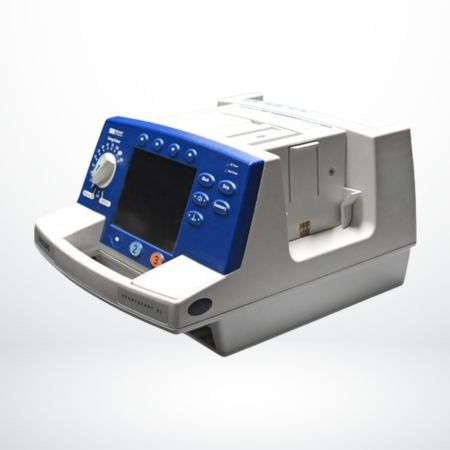

Philips HeartStart XL M4735A Defibrillator

Description

Philips HeartStart XL M4735A Defibrillator by UM Healthcare India Pvt Ltd

Powerful Defibrillation You Can Trust in Emergencies

In critical medical situations, every second can make the difference between life and loss. The Philips HeartStart XL M4735A Defibrillator is engineered to deliver fast, accurate, and reliable cardiac care when it matters most. Designed for hospitals, clinics, and emergency responders, this advanced defibrillator combines proven technology with ease of use.

With UM Healthcare India Pvt Ltd, you gain access to a trusted solution that ensures rapid response and dependable performance in high-pressure environments. This device is built to support healthcare professionals in delivering immediate and effective treatment during cardiac emergencies.

Specifications

HeartStart Dimensions

• Height: 7.5 in (19 cm)
• Width: 14.8 in (37.6 cm)
• Depth: 13.7 in (34.6 cm)
• Weight: 13.2 lbs (6 kg)

HeartStart Battery

• Type: HeartStart Rechargeable Sealed lead acid
• Operating Time: About 100 minutes
• Charging Time: About 14.5 hours
• Power: 2 Ah, 1

HeartStart Display (EL)

• Type: EL – Electroluminescent
• Size: 4.5″ x 3.4″ (11.5 cm x 8.6 cm)
• Resolution: 320 x 240
• Sweep Speed: 29 mm/s nominal
• Viewing Time: 4 Seconds

HeartStart Display (LCD)

• Type: LCD – TFT Color Liquid Crystal Display
• Size: 4.3″ x 3.3″ (11.1 cm x 8.4 cm) on the HeartStart
• Resolution: 320 x 240
• Sweep Speed: 29 mm/s nominal
• Viewing Time: 4 Seconds

Power

• AC Line Powered: 100-240 VAC, 50/60 Hz, 1.5 A

HeartStart ECG Monitoring

• Size: 2.5, 5, 10, 20, 40 mm/mV
• Heart Rate: 15 to 300 bpm
• Inputs: 3 or 5-lead patient cable

SpO2 Monitoring

• Range: SpO2: 0 to 100%; Pulse Rate: 30 to 300 bpm
• Pulse Rate Accuracy: 2% or 1 bpm (whichever is greater)
• Wavelength Range: 500 to 1000 nm
• Emitted Light Energy: ≤ to 15 mW
• Dispaly Update Interval: ≤ 60 seconds
• Resolution: 1%

Synchronized Cardioversion

• Yes in manual mode

Noninvasive Pacing on the

• Waveform: Monophasic Truncated Exponential
• Current Pulse Amplitude: 10 mA to 200 mA (5 mA Resolution); Accuracy 10 mA to 50mA ± 5mA, 50 mA – 200mA ± 10%
• Pulse Width: 20 ms with accuracy of +0, -5 ms
• Rate: 30 ppm to 180 ppm (10ppm increments); accuracy ± 1.5%
• Modes: Demand or Fixed Rate
• Refractory Period: 340 msec (30 to 80 ppm); 240 msec (90 to 180 ppm)

Event Storage

• Internal storage up to 300 events and 50 ECG strips at 11 seconds each
• Events can be marked with a Mark symbol and, if configured for dug annotation, the following labels can be added: Epinephrine (Adrenaline in U.K. & Australia, Atropine, Lidocaine, or other.
• Data Card Event Summary: One Data Card can store a minimum of 2 hours of continuous ECG waveforms and events.

Thermal Array Printer

• Continuous Real-Time Strip: User starts and stops the strip. The strip prints the selected ECG lead.
• Event Printing: Mark key automatically documents ECG and events during defibrillation episodes. The Mark key can annotate the event with one of the following labels: Epinephrine (Adrenaline), Atropine, Lidocaine, and other
• Auto Printing: The printer can be configured to automatically print on Mark, Charge, Shock, and Alarm
• Delayed Printing: The printer can be configured to run real-time or with a 6-second delay
• Speed: 25 mm/s with an accuracy of ± 5%
• Amplitude Accuracy: ± 10% or ± 50 uV, whichever is greater
• Paper Size: 50 mm by 30 m (100 ft)
